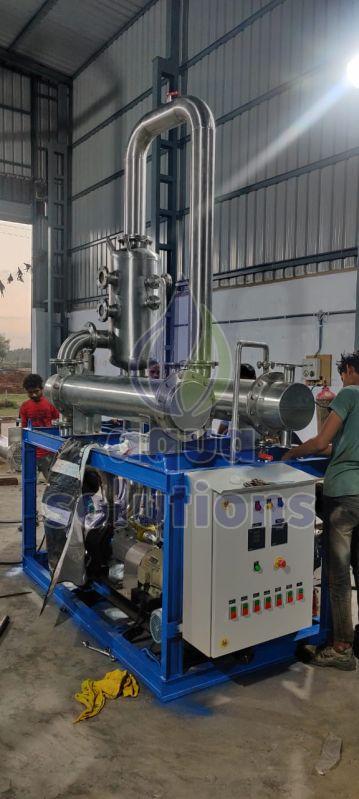

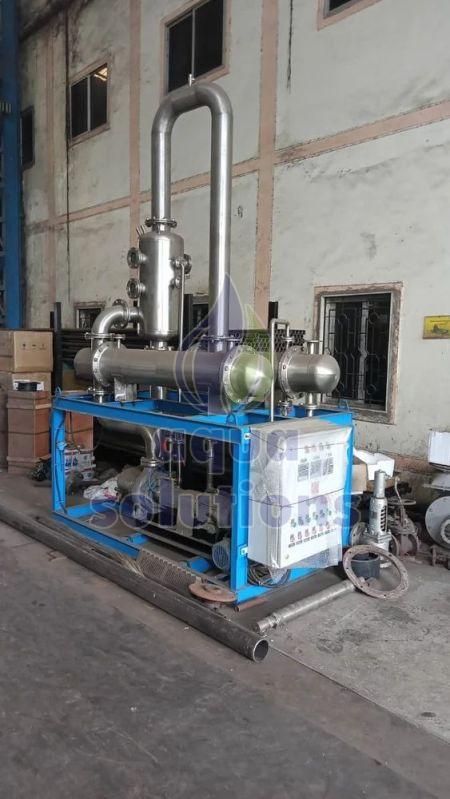

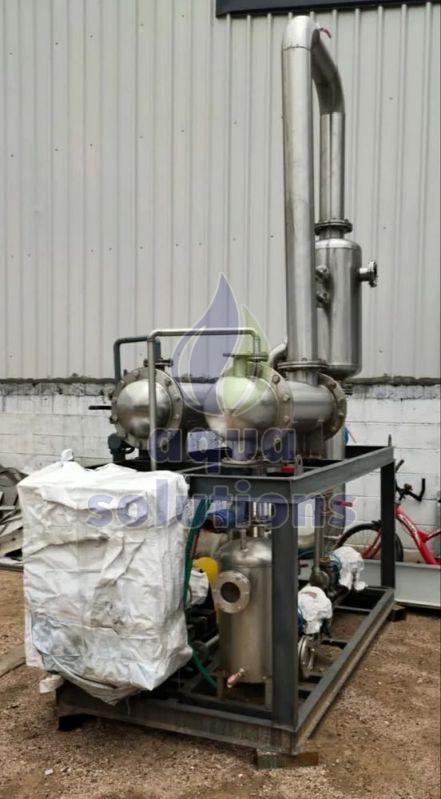

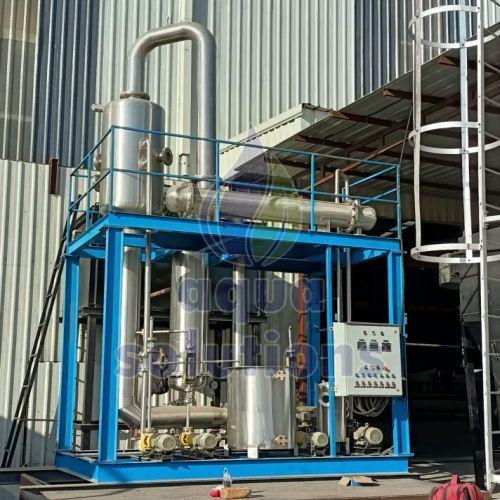

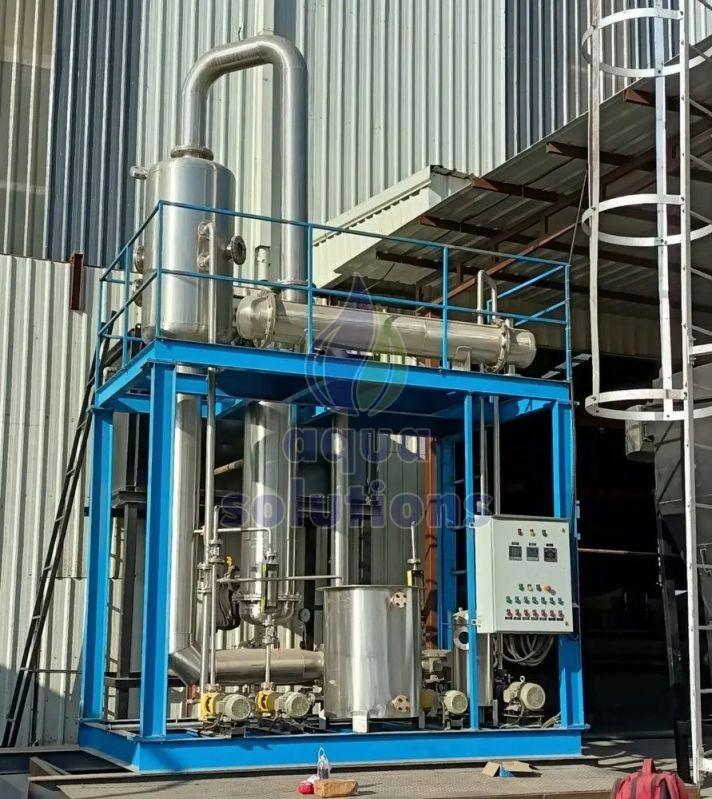

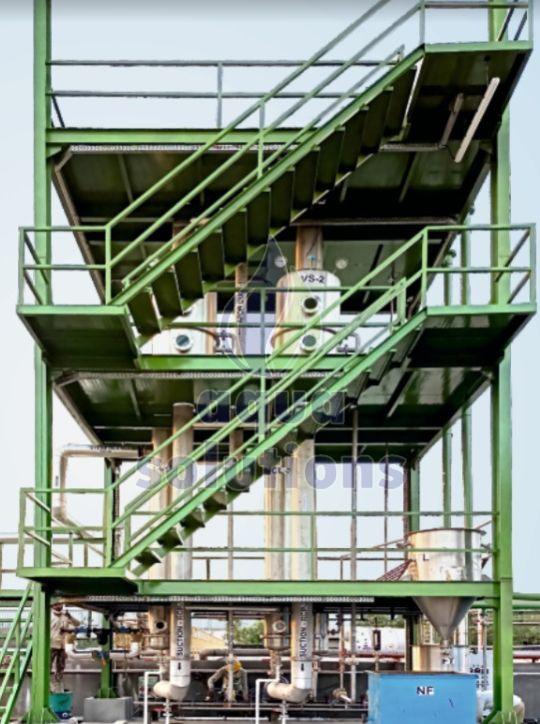

Multi-Effect Evaporator (MEE) System – Overview

A Multi-Effect Evaporator is a highly efficient industrial system designed to remove water or other solvents from a solution through evaporation. It consists of multiple stages (called "effects"), where each stage operates at a lower pressure and temperature than the one before it. This cascading setup allows the vapor from one effect to serve as the heating source for the next, minimizing overall energy consumption.

How It Works

• Multiple Effects: A series of evaporator vessels connected in sequence.

• Pressure Gradient: Each subsequent effect runs at a reduced pressure, enhancing vaporization.

• Vapor Reuse: Steam produced in one effect heats the next, reducing steam demand.

• Flexible Feed Configurations: The system can use forward feed, backward feed, mixed, or parallel arrangements based on the material and process goals.

Key Benefits

• ✅ Energy Efficient – Recycles heat energy across stages to cut down fuel or steam usage.

• ✅ High Output Concentration – Achieves higher solids or solute concentration.

• ✅ Wide Applicability – Used in food processing, pharmaceuticals, and effluent treatment plants.

• ✅ Cost Saving – Lower energy use means lower operational costs over time.

Conclusion

The Multi-Effect Evaporator system offers an economical, sustainable, and scalable solution for concentrating liquids in various industries. It optimizes thermal efficiency while maintaining high productivity.
